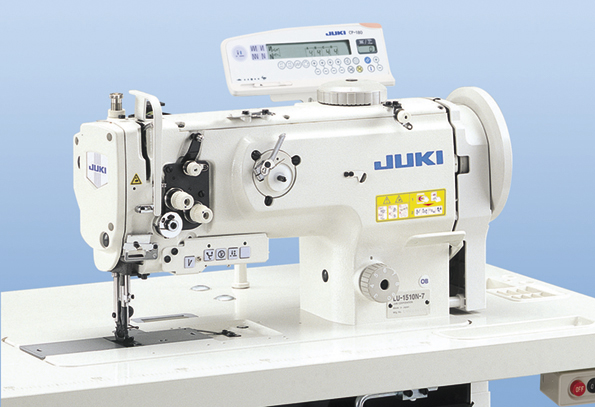

Juki – LU-1511N-7



Product Description

Juki LU-1511N-7 Single Needle, Unison Feed, Lockstitch with Large Vertical Axis Hook, Auto BackTack, Auto FootLift, Needle Position, UBT

Juki’s new, unique complete rectangular feeding motion instead of the more common elliptical motion assures a consistent feed of materials of all thicknesses without any stitch gathering. The amount of the alternating vertical movement of the walking foot and presser foot can be adjusted to a maximum of 6.5mm and applies a consistent pressure to prevent irregular stitcing accommodating both multi-layered and or variable weight heavy type materials. The large capacity vertical hook increases efficiency by reducing the frequency of the bobbin thread changing. The machine also comes with a dual-tension mechanism to support high-tension sewing with thick threads to ensure excellent quality seams through a broad range of materials from light to heavy types.


Juki – LU-1511N-7 Features

The basic machine and its outstanding response to
the sewing of heavy materials.
JUKI’s unique feed mechanism promises excellent efficiency of feed. In addition to the
standard models of 1-needle and 2-needle machines, other models intended for special
purposes are available, including models for extra heavy materials and one having a
thread trimmer. The machine is applicable to an extended range of heavy materials for
industrial use, such as cargo handling belts and containers, as well as those for
general use, such as car seats, sofas and bags, thereby contributing to both improved
quality and increased productivity.

The alternating vertical movement mechanism prevents irregular stitches.The machine has adopted a new mechanism that does not change the ratio of alternate vertical movement of the walking foot and presser foot even when the material thickness changes.Even when a heavy-weight material is used, the presser foot lift does not
decrease. This means that the presser foot comes into contact with the material
at exactly the same time that it does when sewing lighter-weight sections of
the material. As a result, the walking foot retains the material with a
consistent pressure to prevent irregular stitches.The amount of the alternating vertical
movement of the walking foot and presser foot can be adjusted up to the maximum
of 6.5mm according to the height of multilayered portions of material.

Consistent seam quality.With the adoption of a new rectangular
feed mechanism, an alternating vertical movement mechanism, and a unison feed
mechanism, the machine can feed heavy materials powerfully and smoothly. Well
tensed seams are consistently produced without pitch errors.
With its maximum stitch length of 9mm, the machine can be applied to a broader
range of uses.

12 Months parts.
